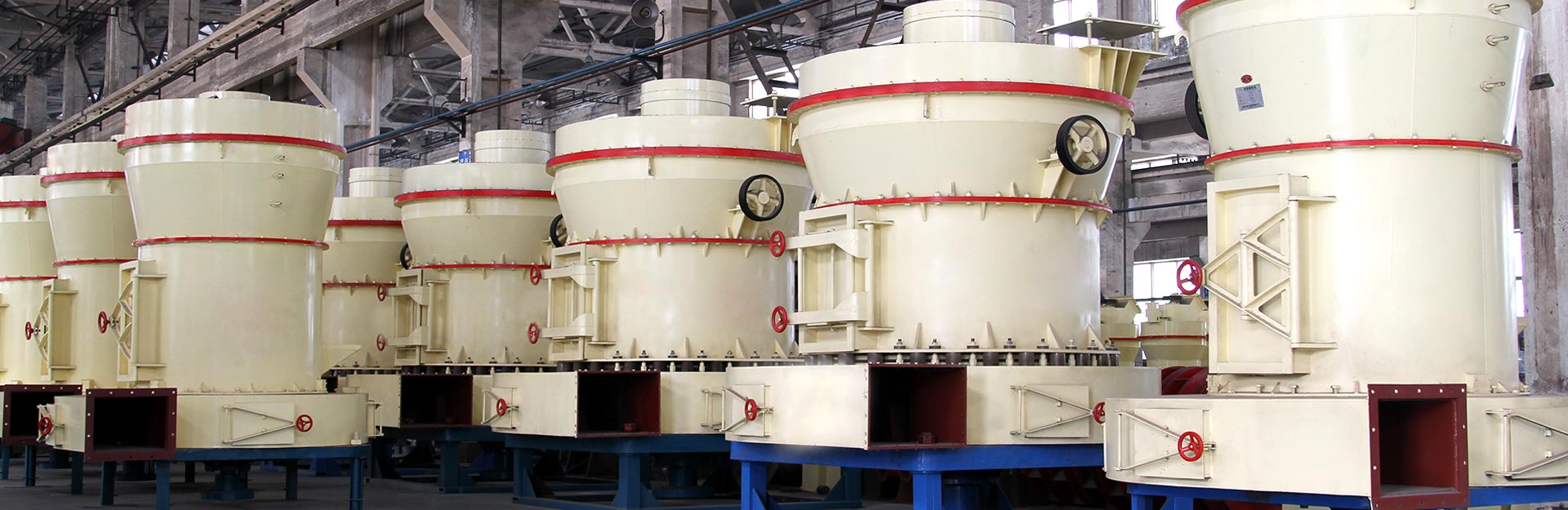

Raymond Mill

Powder making (80-325mesh)

: For Lasted Price; Send Inquiry

01Rotating stably and operating reliably

main mill transmission device adopts sealed gear box
02high screen-pass rate

compared with other grinding equipments, the new model pass rate is up to 99%, which is impossible for old type
03Long life-span of the quick-wear parts

quick-wear parts are made of high manganese steel with long service life. All the motors brand are national standard
04High output and good quality

under the similar driving force, it can produce more than 30% powders than other mills

Technical Data

Max Feeding size(mm):<25-<30

Capacity(t/h): 1.3-40

Material: Barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, gypsum, iron oxide red, slag, grain slag, clinker, insulation materials, etc.

Grow your business
Contact us now!: Send us:market@zdzg.com; Contact Us0086-0371-63313738008618039114854

Parameter Form

Case Study

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

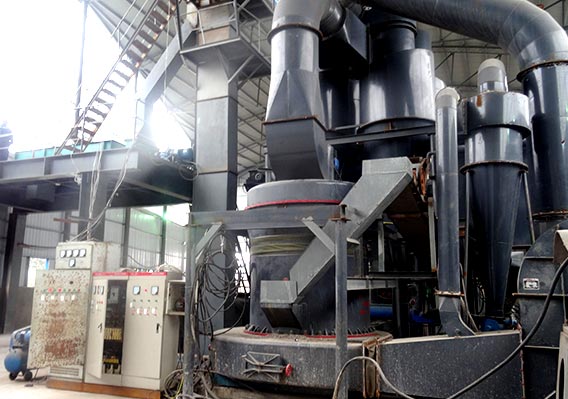

Raymond mill for Feldspar in Zambia

Processing material: feldspar and limestone Discharging size: 90mesh Performance feedback: spring loaded device of high pressure spring can make the grinding pressure of roller increasing, production increasing and material range wide.
20t/h HGM mill for barite in Peru

Processing material: barite Discharging size: 300mesh Performance feedback: roller device adopts the most advanced multi-stage sealing including mechanical air resistance sealing and overlapping sealing, whose sealing performance is good, which can lower the maintenance cost and prolong the lifespan of equipment.

Get quotation

Service Support

To build product quality, to enhance service credibility.

30 seconds for connecting customer service
30 minutes for getting technical answer
24 hours for getting free solution plan

Get price and support :

Please enter your requirement and contact information and we'll get back to you as soon as possible, including price, shipment and payment items.

Model	4525	4119
Feeding Size(mm)	≤30	≤25
Output Size(mm)	0.173-0.044	0.173-0.044
Shift Output of Different Material Fineness(t)	16-176	8-78
Rotation Speed of Central Shaft(r/min)	82	105
Ring Diameter(mm)	1770	1400
Roller Diameter(mm)	450	410
Roller Height(mm)	250	190
Main Motor	Y315M-4-132	Y280S-4-75
Fan Motor	Y315M-4-132	Y280S-4-75
Analyzer Motor	YCT250-4A-18.5	YCT200-4B-7.5

Model	Output Size (mm)	Shift output of different materia fineness(t)
4525	0.173-0.044	16-176
4119	0.173-0.044	8-78
