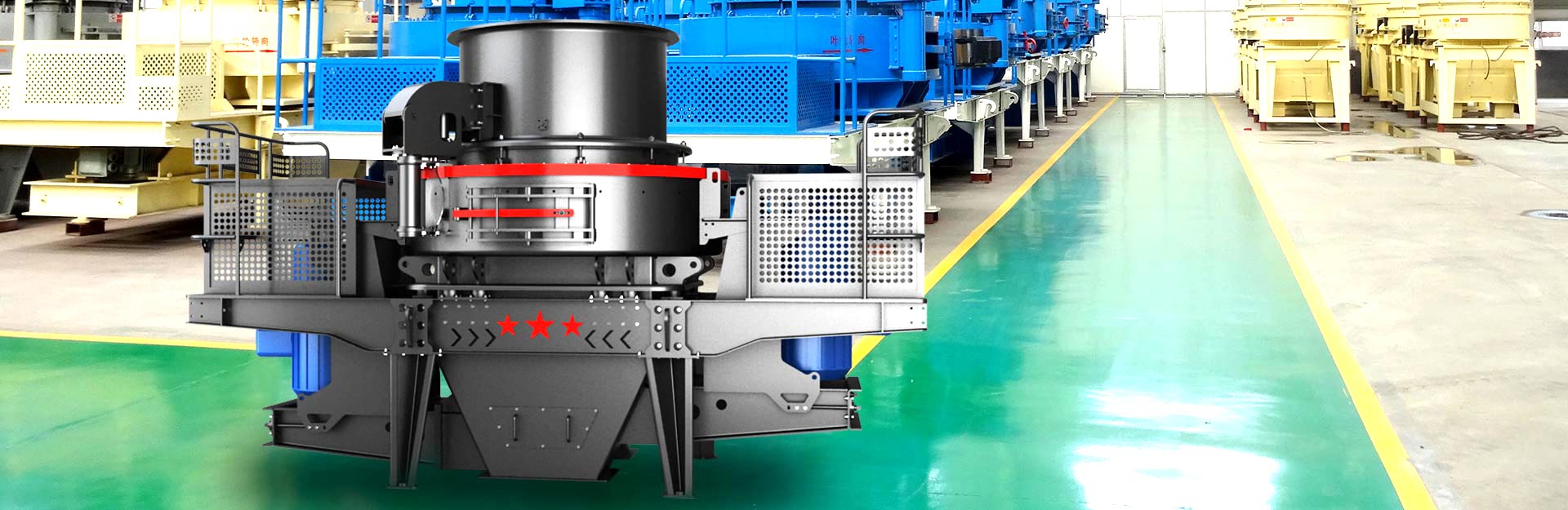

HVI Sand Maker

Sand shaping and sand making

Max Feeding size(mm): 30-55

Outlet opening(mm): 6-38

Capacity(t/h): 70-585

Power(kw): 150-630

Material: pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, construction waste, etc

Grow your business
Contact us now!: Send us:market@zdzg.com; Contact Us0086-0371-63313738008618039114854

Parameter Form

Model		HXVSI-7611	HXVSI-8518	HXVSI-9526	HXVSI-1140	HXVSI-1145	HXVSI-1150
Capacity (t/h)	Feed both at center and sides	120-180	200-260	300-380	450-520	500-610	520-650
Capacity (t/h)	Feed at center	60-90	100-130	150-190	225-260	245-355	255-365
Max.feeding size（mm）	Soft material	35	40	45	50	50	50
Max.feeding size（mm）	Hard material	30	35	40	40	45	45
Rotation speed （r/min）		1700-1890	1520-1690	1360-1510	1180-1310	1150-1300	1150-1300
Double Motor power（kw）		4P 110	4P 180	4P 264	4P 400	4P 400	4P 500
Overall dimension （L×W×H）（mm）		3700×2150×2100	4140×2280×2425	4560×2447×2778	5100×2700×3300	5500×2700×3300	5500×2700×3300
Power supply		380V 50HZ
Lubrication station	Double motor power of oil pump	2×0.31Kw
	Safety assuance	Double oil pumps assure enough oil supply:automatic switch off with no oil stream or pressure,water cooling in summer,motor heating stare-up in winter.
	Overall dimension （L×W×H）（mm）	820×520×1270
	Power of oil tank heater	2KW

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

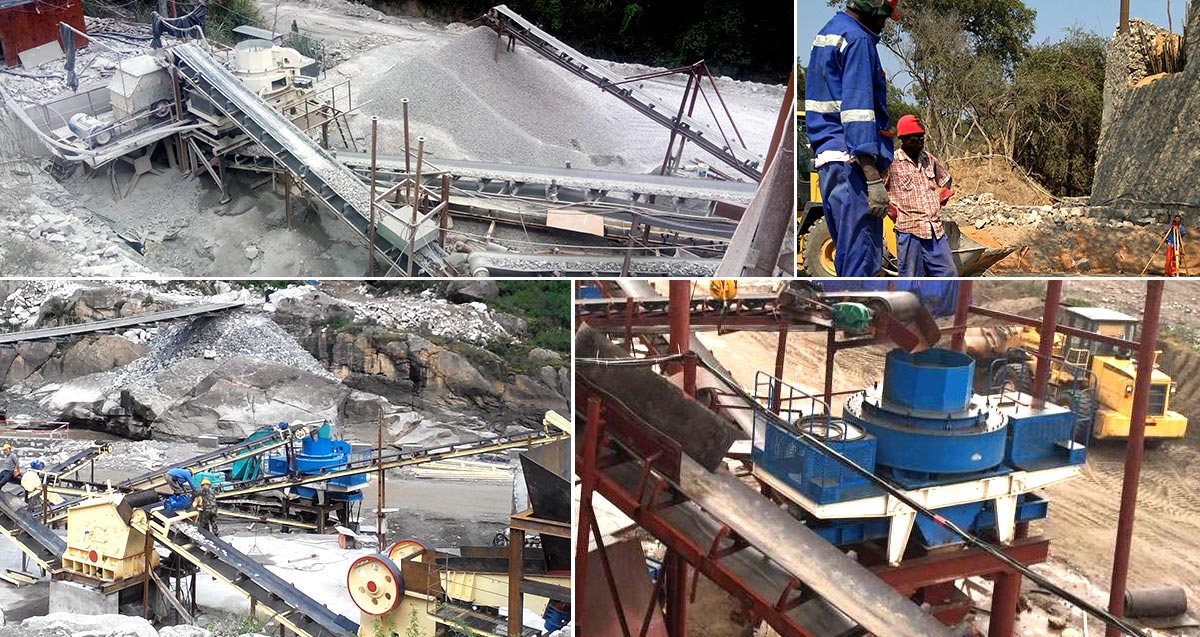

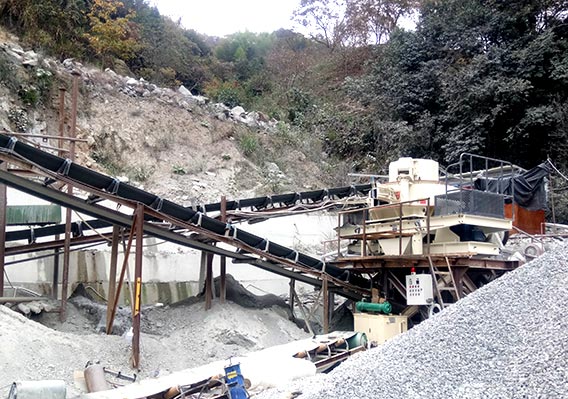

300t/h sand maker for sand making plant in Argentina

A construction company in Argentina was looking for a crusher that finally met all their requirements: recycling, quarrying, complies with all health and safety requirements and produces perfect value sand. The solution: 300t/h HVI sand maker.

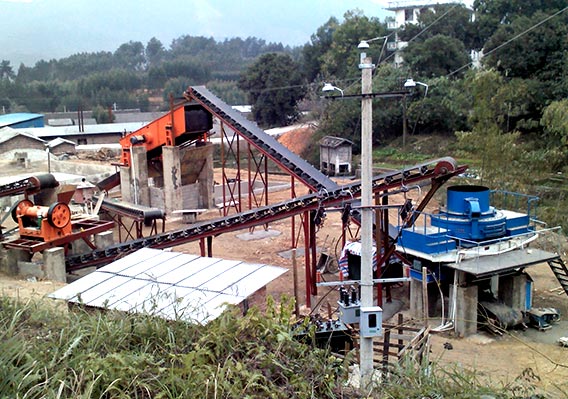

150T/H sand shaping machine for quarry in Indonesia

The company processes the demolition waste generated in road building and building construction at its own recycling yard. After renting for some years, they finally purchased a shaping machine.
