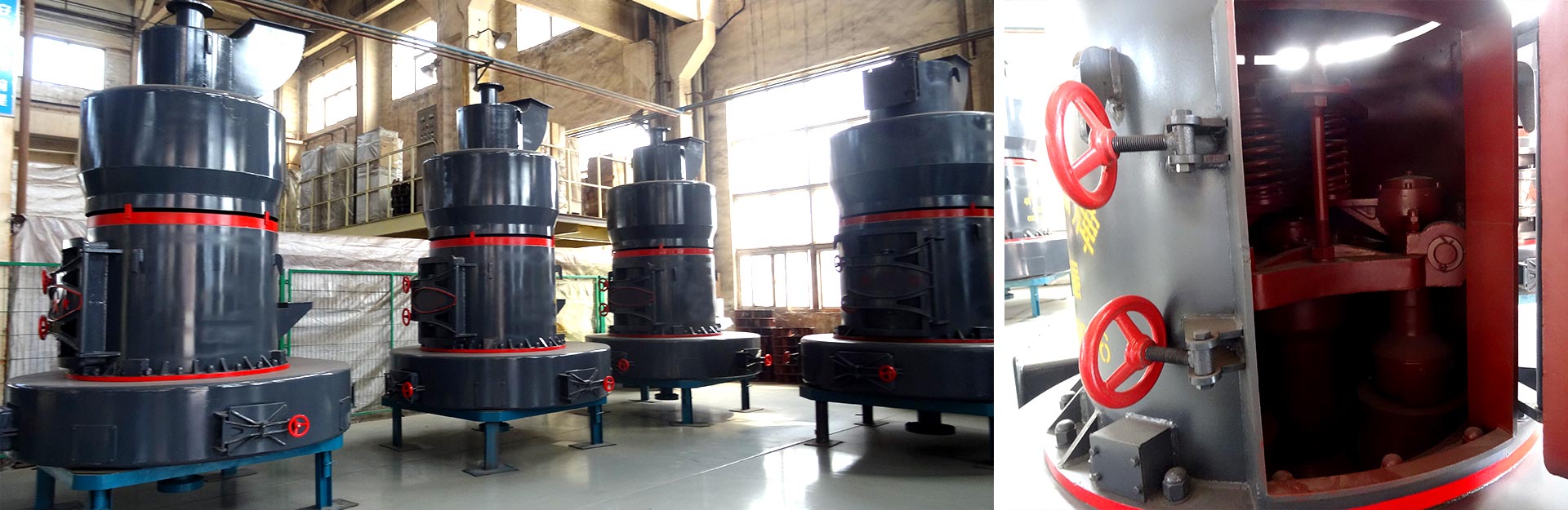

HGM German Superfine Powder Mill

Powder making 80-1250mesh

: For Lasted Price; Send Inquiry

01Low energy consumption

under same capacity and fineness, system energy consumption is only 1/3 of air flow mill
02Large feeding size fine output

feeding size is large, and one-time average output could reach 6.5um superfine powder
03Good sealing performance

with overlapping, multi-poles sealing grinding devices, high pressure micro mill has a good sealing performance
04Rotating stably; operating reliably

belt wheel design with smooth transmission and reliable operation

Technical Data

Max Feeding size(mm):<20-<40

Capacity(t/h): 1.3-40

Power(kw): 8-280

Material: Barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, gypsum, iron oxide red, slag, grain slag, clinker, insulation materials, etc.

Grow your business
Contact us now!: Send us:market@zdzg.com; Contact Us0086-0371-63313738008618039114854

Parameter Form

Model	HGM88	HGM95	HGM 100	HGM120	HGM130	HGM138	HGM160	HGM175	HGM190
Feeding size（mm）	＜20	＜25	＜25	＜25	＜25	＜25	＜30	＜35	<40
Finished product size（mm）	0.25-0.015	0.25-0.015	0.25-0.015	0.25-0.015	0.25-0.038	0.25-0.038	0.25-0.038	0.25-0.038	0.25-0.038
Processing capacity（t/h）	0.4-5	0.6-7	0.8-10	1.2-15	1.6-21	2-25	2.7-28	3-35	5-40
Central shaft rotate speed（r.min）	167	150	142	136	105	92.5	82	75	74
Diameter of pulverizing ring（mm）	908	1006	1075	1280	1400	1510	1770	1900	2040
Number Of pulverizing roller	3	3	3	3	4	4	5	5	4
Main motor power（kw）	22	30	45	55	75	90	132	185	280
Fan motor power（kw）	22	30	45	75	90	110	160	200	280
Analyzer motor power（kw）	5.5	7.5	11	15	18.5	22	22/30	30/45	55

Case Study

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

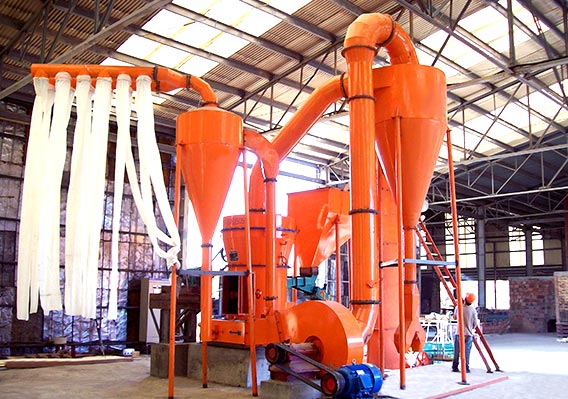

150t/h HGM mill for feldspar in Peru

Processing material: feldspar Discharging size: 1000mesh Performance feedback: the improved turbine analysis machine adopts high-density blades, and then air resistance is being reduced, the fineness and production being increasing. The regulation of frequency analysis machine is more accurate, more energy saving, whose sorting efficiency is better and automatic lever is higher.

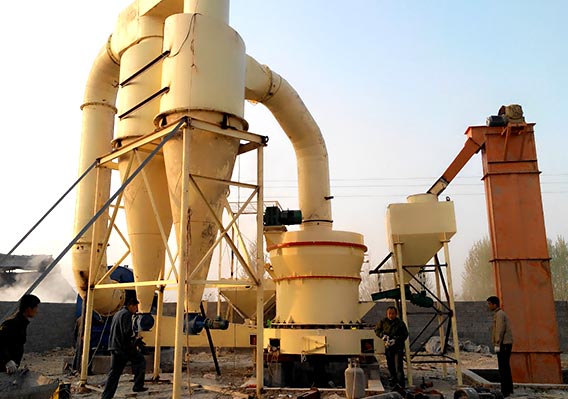

20t/h HGM mill for barite in Peru

Processing material: barite Discharging size: 300mesh Performance feedback: roller device adopts the most advanced multi-stage sealing including mechanical air resistance sealing and overlapping sealing, whose sealing performance is good, which can lower the maintenance cost and prolong the lifespan of equipment.
