Ball Mill

Grinding work for Ore beneficiation

: For Lasted Price; Send Inquiry

01Energy-conserving

compared to old model, 40% energy consumption will be reduced and cost decreased. high grinding efficiency with uniform particles and does not produce dust, suitable for milling toxic and highly-abrasive materials since it can be used in a completely enclosed form
02Even output high capacity

adopting advanced output controllable technology and combination with clients’ actual grinding material, our company uses proper grinding bar, which changes the traditional point contact into line contact, assuring the output more even, capacity increased almost 50%

Technical Data

Max Feeding size(mm): <25-<50

Capacity(t/h): 0.62-180

Power(kw): 18.5-630

Material: Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore, iron ore, copper ore, gold ore,quartz, active carbon, carbon black, ceramic, coal, etc.

Grow your business
Contact us now!: Send us:market@zdzg.com; Contact Us0086-0371-63313738008618039114854

Parameter Form

Model	Shell rotation speed （r/min）	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
Ф900×1800	36-38	1.5	<20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	<20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	<25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	<25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	<25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	<25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	<25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	<25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	<25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	<25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	<25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	<25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	<25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	<25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	<25	0.074-0.4	As per process conditions	630	149
Ф3600×4500	17	90	<25	0.074-0.4	As per process conditions	850	169
Ф3600×6000	17	110	<25	0.074-0.4	As per process conditions	1250	198
Ф3600×8500	18	131	<25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	<25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	<25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	<25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	<25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	<25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	<25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	<25	0.074-0.4	148-615	4500	525

Model	Feeding size (mm)	Capacity (t/h)
Ф900×1800	<20	0.65-2
Ф900×3000	<20	1.1-3.5
Ф1200×2400	<25	1.5-4.8
Ф1200×3000	<25	1.6-5
Ф1200×4500	<25	1.6-5.8
Ф1500×3000	<25	2-5
Ф1500×4500	<25	3-6
Ф1500×5700	<25	3.5-6
Ф1830×3000	<25	4-10
Ф1830×4500	<25	4.5-12
Ф1830×6400	<25	6.5-15
Ф1830×7000	<25	7.5-17
Ф2100×3000	<25	6.5-36
Ф2100×4500	<25	8-43
Ф2100×7000	<25	12-48
Ф2200×4500	<25	9-45
Ф2200×6500	<25	14-26
Ф2200×7000	<25	15-28
Ф2200×7500	<25	15-30
Ф2400×3000	<25	7-50
Ф2400×4500	<25	8.5-60
Ф2700×4000	<25	22-80
Ф2700×4500	<25	26-90
Ф3200×4500	<25	As per process conditions
Ф3600×4500	<25	As per process conditions
Ф3600×6000	<25	As per process conditions
Ф3600×8500	<25	45.8-256
Ф4000×5000	<25	45-208
Ф4000×6000	<25	65-248
Ф4000×6700	<25	75-252
Ф4500×6400	<25	84-306
Ф5030×6400	<25	98-386
Ф5030×8300	<25	118-500
Ф5500×8500	<25	148-615

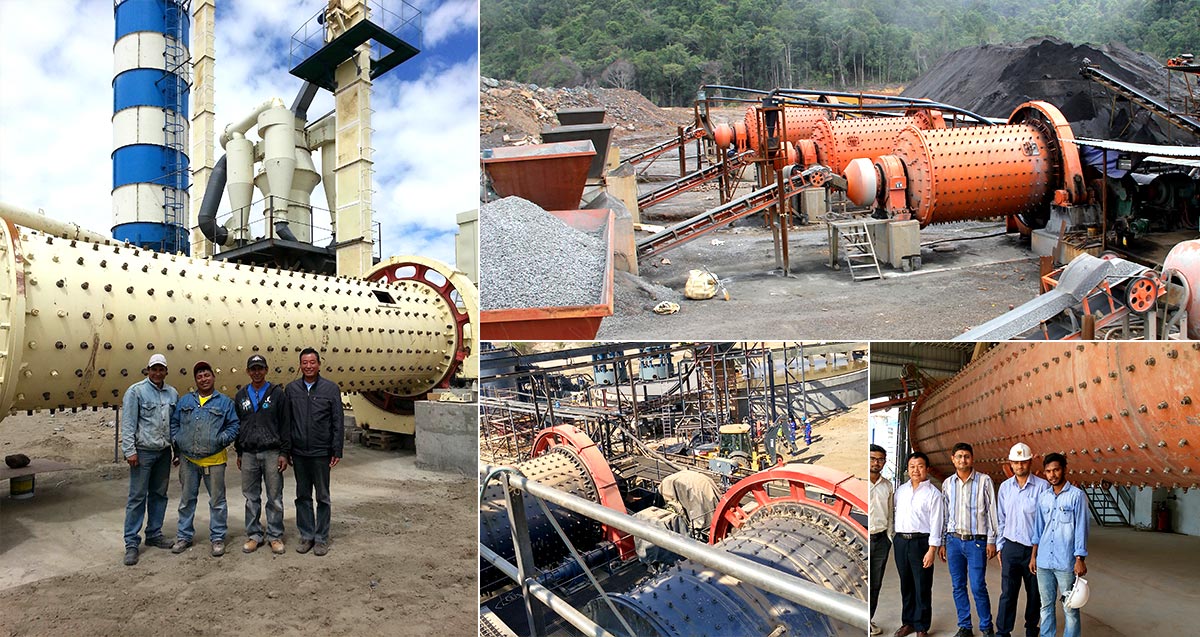

Case Study

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

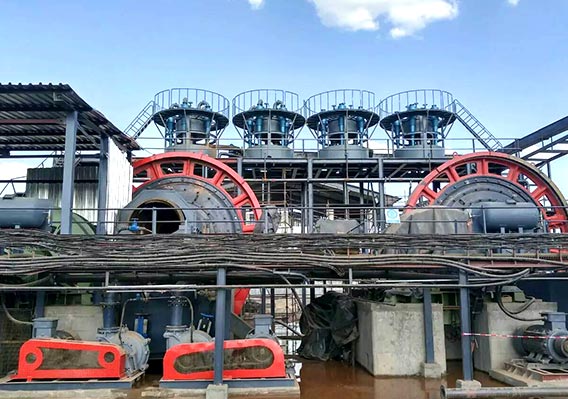

50t/h ball mill for iron ore in Iran

Processing material: iron ore Discharging size: 0.82mm Performance feedback: The turning gearwheel adopts casting hobbling process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The ball grinding mill is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

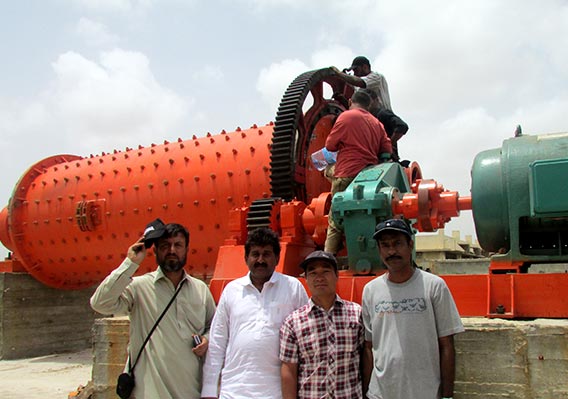

Ball mill for copper ore processing in India

Processing material: copper ore Feeding size: 22mm Performance feedback: Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Using double tiered roller axletree, with centripetal spherical surface as the support of the host axletree, can reduce energy cost by 30%.
