Mobile Crushing And Screening Plant

Compact crushing

01 Unit integration

superior performance of complete set, reasonable & compact configuration, low requirements to working site
02Nice maneuver performance

compact structure for whole set, short turning radius, easy to go in & out and convert working site
03Additive generator unit

configurated with generator unit in case the normal working under electroless or power outage
04 Wheel-type, Crawler-type

With jaw crusher, cone crusher or VSI crusher equipped as well as screening Unit

Max Feeding size(mm): 500-800

Outlet opening(mm): 50-225

Capacity(t/h): 85-650

Power(kw): 92-220

Material: pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, construction waste, etc

Grow your business
Contact us now!: Send us:market@zdzg.com; Contact Us0086-0371-63313738008618039114854

Parameter Form

MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS

Model	FTM938F1210	FTM938FW1214	FTM1149F1315	FTM1349HD1110	FTM1349HD1315
Transportation Length（mm）	12000	12000	13900	15450	15450
Transportation Width（mm）	2550	2550	2900	2950	2950
Transportation Height（mm）	3900	3900	4450	4500	4500
Maximum Length（mm）	12500	12500	13900	15450	15450
Maximum Width（mm）	3250	3260	3250	3250	3250
Maximum Height（mm）	5100	5200	5200	5200	5200
Weight（t）	39	44	54	62	62
Crusher Model	PF-1210	PF-1214	PF-1315	HD1110	HD1315
The Maximum Feeding Size（mm）	350	350	500	400	700
Production Capacity（t/h）	70-130	100-180	130-250	112	280
Vibrating Feeder	ZSW950×3800	ZSW950×3800	ZSW110×4900	ZSW130×4900	ZSW130×4900
Main Belt Conveyor	B800×8.5M	B800×8.5M	B1000×9.5M	B800×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3.2M	B500×3.2M	B650×4M	B650×4M	B650×4M
Genset(Optional) （kw）	320	320	400	320	440
Iron Separator (Optional)（kw）	RCYD(C)-8	RCYD(C)-8	RCYD(C)-10	RCYD(C)-8	RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model	FTM938HD80	FTM1149HD98	FTM1349HD110	FTM1349HD125
Transportation Length(mm)	12600	13500	14500	15200
Transportation Width(mm)	2600	2700	2800	2900
Transportation Height(mm)	3870	4200	4450	4500
Maximum Length(mm)	12500	14000	16100	16700
Maximum Width(mm)	4100	4500	5100	5100
Maximum Height(mm)	4100	4900	5000	5300
Weight(t)	39	57	55	65
Tire Configuration	Dual-axial	Dual-axial	Dual-axial	Dual-axial
Jaw Crusher	HD80	HD98	HD110	HD125
Maximum Feeding Size(mm)	500	550	660	800
Discharge Opening Size(mm)	50-150	75-175	100-200	125-225
Capacity(t/h)	85-275	110-350	215-510	280-650
Vibrating Model	ZSW380×95	ZSW420×110	ZSW490×130	ZSW490×130
Main Belt Conveyor	B800×8.5M	B1000×9.5M	B1000×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3M	B650×3.5M	B650×4M	B650×4M
Genset(Optional) (kw)	200	250	270	400
Iron Separator (Optional)	RCYD(C)-8	RCYD(C)-10	RCYD(C)-10	RCYD(C)-12

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

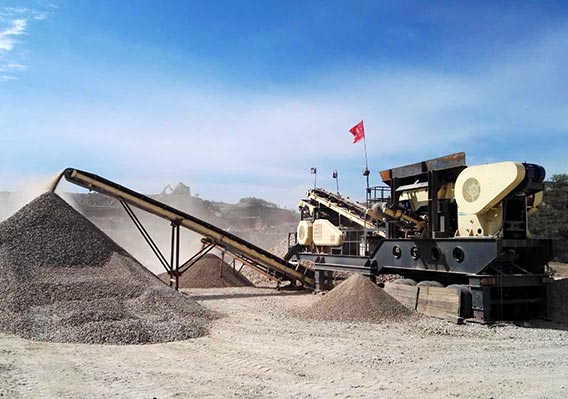

300t/h mobile crusher for river rock crushing

At the beginning of the year, the mobile crusher made light work of transforming 0-200 mm river rock into fine 0-19 mm value grain. The awesome capacity and low diesel consumption were the key of decision to purchase.

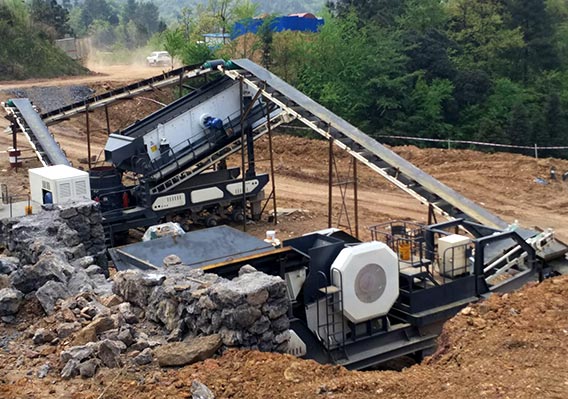

150T/H mobile crusher for quarry in Indonesia

The company processes the demolition waste generated in road building and building construction at its own recycling yard. After renting for some years, they finally purchased a crawler type mobile jaw crusher.
