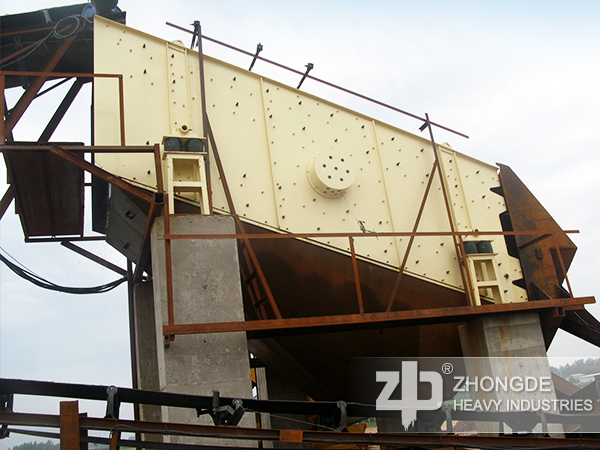

The Structure of the Sand Vibrating Screen

Sand vibrating screen is specially designed for screening quarry stones. It can also be used in coal and mineral processing, building materials, electricity and chemical sectors for product classification. Sand vibrating screen consists of mainframe, screen web, eccentric bock, electric motor, rub spring and coupler. The inclination of the screen surface is 20 °. Sand vibrating screen has advantages of advanced structure, strong vibration, vibration, low noise, easy to maintain, durable and so on. This article will introduce you the structure of the sand vibrating screen in details.

Vibrator

According to the configuration method of the eccentric weight, there are two types of vibrators for the single shaft sand vibrating screen and double-axis sand vibrating screen. The block type of the vibrator is the best.

Sieve box

Sieve box consists of sieve frame, sieve surface and its compaction device. Screen frame is constituted by the lateral plates and beams. And screen frame must be sufficiently rigid.

Supporting device

Supporting devices have hanging type and sitting type. The installation of the sitting type is simpler, and the installation position is lower, so it generally should be preferred. The supporting devices of the sand vibrating screen are mainly composed of elastic components. The common used elastic components are coil springs, plate springs and rubber springs.

Gearing

Sand vibrating screen usually uses v-belt as gearing. The structure of the sand vibrating screen is very simple. Users can adjust the rotating speed of the vibrator as they want. However, v-belt is apt to slip during running, which can lead to the clogging phenomena of sand vibrating screen. Some sand vibrating screen may directly choose coupling as their gearing. The service life of the coupling is long, but the speed of the vibrator can not be adjusted.
