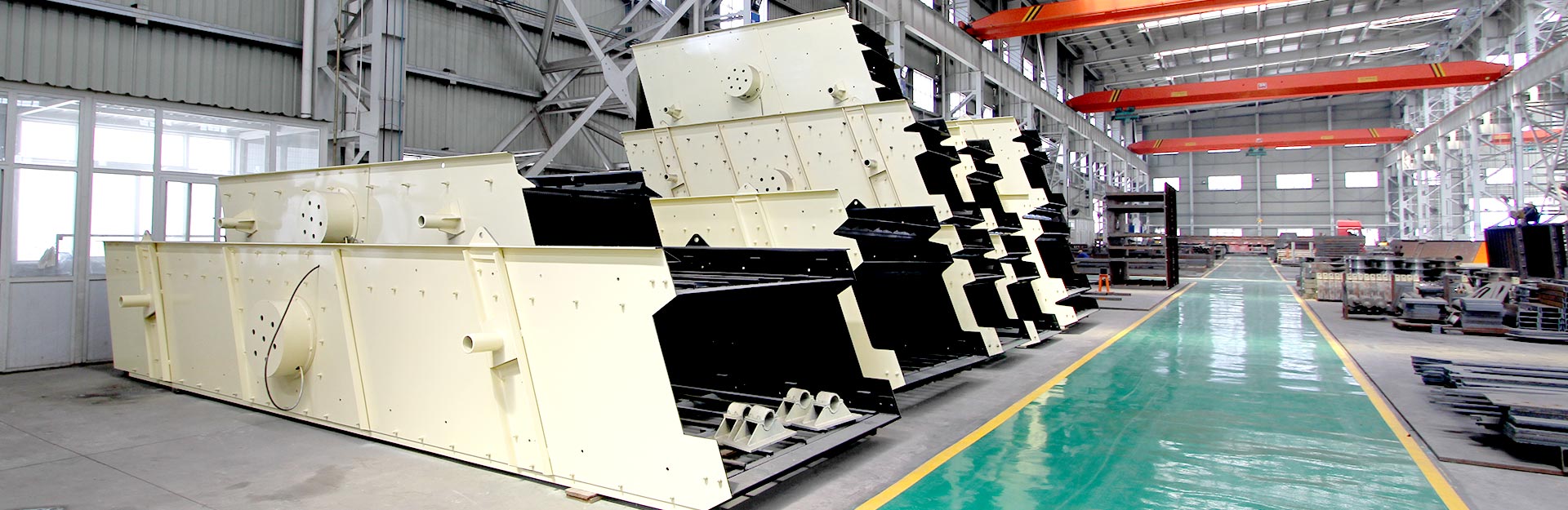

HX Series Heavy Vibrating Screen

Lubrication by thin oil

: For Lasted Price; Send Inquiry

HX series circle vibrating screen, is the red star machine based on YA, YK series vibrating screen, integrated customer site usage and maintenance experience, in view of the heavy upgrades to improve working conditions of a new type of circular vibrating screen

Parameter Form

Model	Sieve Layer	Sieve Obliquity (°)	Motor Power (kw)	Vibrating Frequency (r/min)	Max.Feeding Size (mm)	Production(t/h)	Dimensions(mm) （L×W×H）
2HX1545	2	18	15	780-900	200	60-500	5380×2295×1410
3HX1545	3	18	15	780-900	200	65-500	5575×2295×1990
4HX1545	4	18-20	18.5	780-900	200	65-500	5765×2295×1990
2HX1855	2	18	18.5	780-900	200	75-600	5680×2565×1450
3HX1855	3	18	22	780-900	200	75-600	5900×2565×1850
4HX1855	4	18-23	22	780-900	200	75-600	6030×2565×2500
2HX2165	2	18	30	780-900	200	85-700	7160×2990×1690
3HX2165	3	18	30	780-900	200	85-700	7380×2990×2365
4HX2165	4	18-23	37	780-900	200	85-700	7430×2990×2550
2HX2465	2	18	37	780-900	200	100-800	7160×3290×1690
3HX2465	3	18	37	780-900	200	100-800	7380×3290×2365
4HX2465	4	18-23	37	780-900	200	100-800	7430×3290×2500
2HX2765	2	18	37	780-900	200	120-900	7180×3570×1805
3HX2765	3	18	45	780-900	200	120-900	7390×3570×2445
4HX2765	4	18-23	45	780-900	200	120-900	7480×3570×2715
2HX3065	2	18	37	780-900	200	200-1200	7180×3870×1805
3HX3065	3	18	45	780-900	200	200-1200	7390×3870×2445
4HX3065	4	18-23	45	780-900	200	200-1200	7480×3870×2715
2HX3075	2	18	22×2	780-900	400	200-1300	8700×4055×1980
3HX3075	3	18	37×2	780-900	400	200-1300	8940×4120×2720
