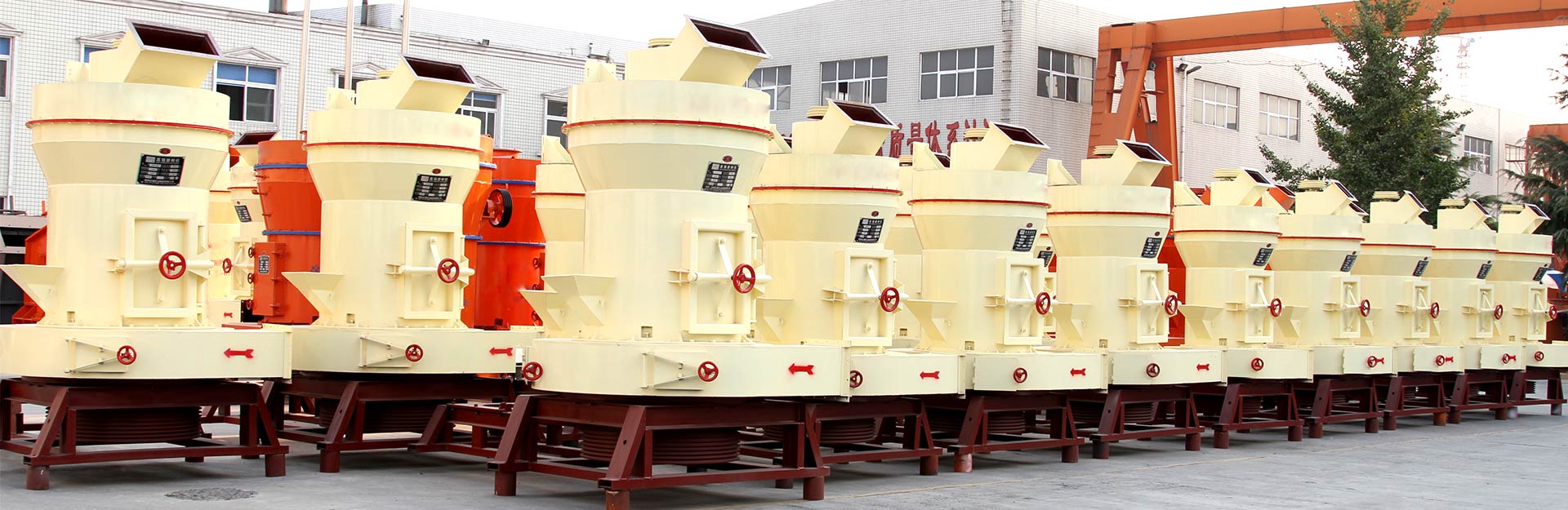

High-strength Pulverizer

Powder making(30-80mesh)

: For Lasted Price; Send Inquiry

01Uniform fineness and high pass rate

final powder fineness is even, with 99% pass rate, which cannot be achieved by other grinding machines
02Transmit smoothly and operating reliably

transmission device adopts sealed gear box and belt wheel design with smooth transmission and reliable operation
03Better wear-resistance

important parts are made of high quality steel; wearing parts are made of high performance wear-resistant materials
04High price performance

the investment is low and money-returning is quick and high

Technical Data

Max Feeding size(mm): <15-<25

Capacity(t/h): 1.3-150t/h

Material: Barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, gypsum, iron oxide red, slag, grain slag, clinker, insulation materials, etc.

Grow your business
Contact us now!: Send us:market@zdzg.com; Contact Us0086-0371-63313738008618039114854

Parameter Form

Parameter Model	Raymond mill62	High strength66	High strength76	High strength87	High strength92	High strength93	High strength97	Raymond mill4119	Raymond mill4525
Feeding size（mm）	<15	<15	<20	<25	<25	<25	<25	≤25	≤30
Size of finished product（mm）	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.044	0.173-0.044
Shift output of different material fineness(t)	0.6-9	1-20	1.5-25	2.8-33	3-36	3.5-40	4-52	8-78	16-176
Rotate speed of central shart（r/min）	274	190	170	161	148	140	130	105	82
Diameter of pulverizing ring（mm）	525	725	850	907.5	973	1006	1050	1400	1770
Diameter of pulverizing ring（mm）	150	210	250	270	300	300	310	410	450
Height of pulverizing roller（mm）	100	150	150	150	160	160	170	190	250
Main Motor	7.5	15	18.5	22	30	30	37	75	132
Fan Motor	4-5.5	4-11	4-15	4-18.5	4-22	2-22	4-37	4-75	4-132
Analyzer Motor	6-1.1	6-2.2	6-2.2	6-2.2	6-2.2	6-3	4A-5.5	4B-7.5	4A-18.5

Case Study

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

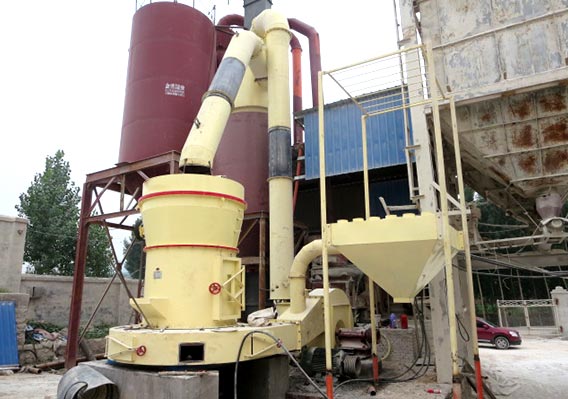

High strength pulverizer for Feldspar in Iran

Processing material: clay Discharging size: 35mesh Performance feedback: With same capacity and fineness, cost of the high strength pulverizer is only 1/8 of airflow type, while, it is used more widely

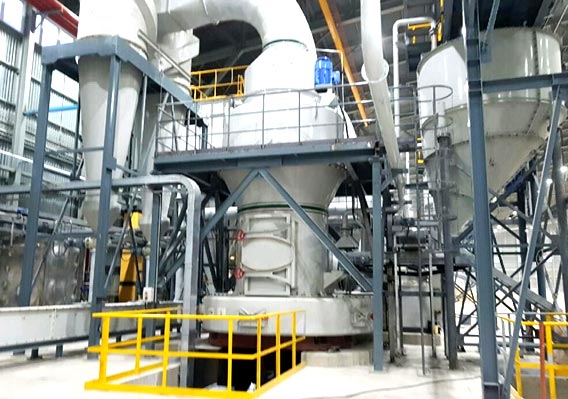

25t/h high strength pulverizer for kaolin in India

Processing material: barite Discharging size: 70mesh Performance feedback: Under the high pressure spring working, rolling pressure force of high strength pulverizer 800-1200kg higher than other same type mill.
