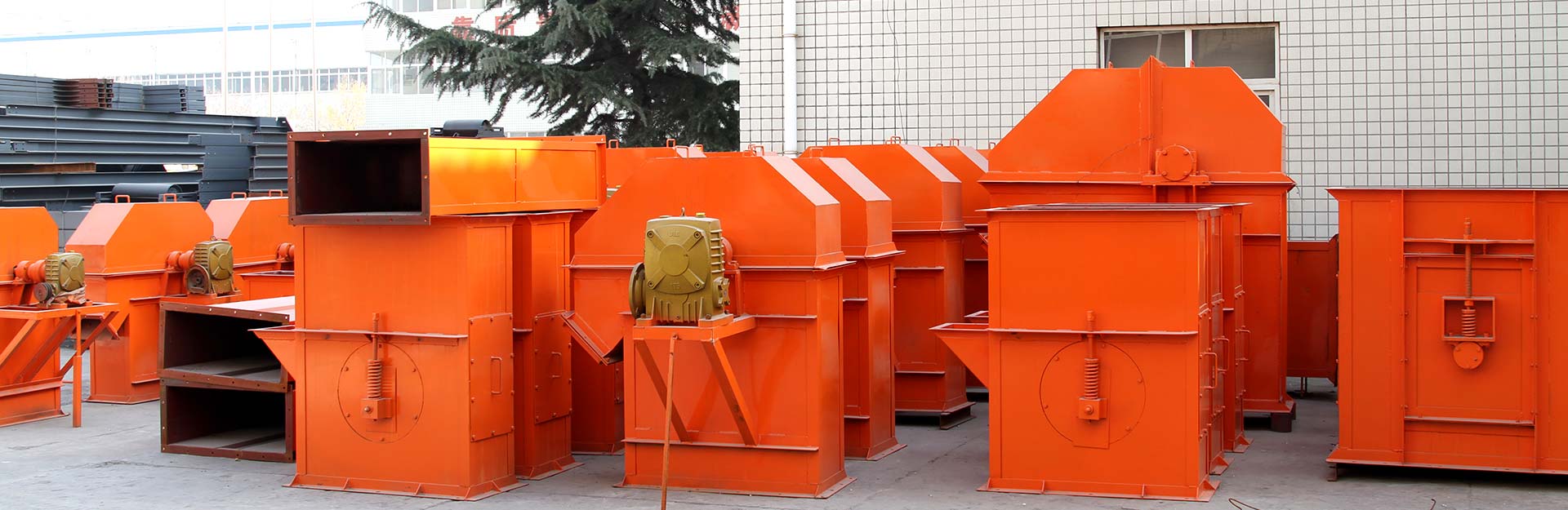

Bucket Elevator

Material transport system

: For Lasted Price; Send Inquiry

Bucket elevator is suitable for vertical transport of powder, granular, and small pieces of material. It has the advantages of simple structure, stable operation, high degree of improvement and long service life, etc.

Parameter Form

Technical parameters of ring chainbucket elevator

Specification	Max.lifting height (m)	Conveying capacity (m³/h)	Max.size (mm)	Pitch of buckets (mm)	Motor prower （kw）
TH160	25	7-12	15-20	400	3-4
TH200	28	8-15	20-30	500	3-5.5
TH250	30	10-25	25-35	500	4-7.5
TH300	30	25-35	30-40	500	5.5-11
TH315	40	30-40	35-45	512	5.5-15
TH400	40	45-60	40-55	512	11-22
TH500	40	65-80	50-60	512	15-30
TH630	40	100-120	60-65	688	18.5-37
TH800	40	130-150	65-75	920	22-45

Technical parameters of wire belt bucket elevator

Specification	Max.lifting height (m)	Conveying capacity (m³/h)	Max.size (mm)	Bucket Volume (L)	Motor prower （kw）
TDG160	80	34	0-20	2.6	2.2-11
TDG200	80	45	0-25	4.1	3-15
TDG250	80	71	0-30	6.5	5.5-22
TDG315	80	101	0-35	10	7.5-30
TDG400	80	158	0-40	16	15-45
TDG500	80	218	0-45	25	18.5-55
TDG630	80	345	0-50	40	30-90
TDG800	80	491	0-50	61	45-132

Plate chain bucket elevator

Specification	Max.lifting height （m）	Max.lifting capacity （m³/h）	Percentage allowed（%）					Pitch （mm）	Motor power （kw）
			10	25	50	75	100
			Max.size（mm）
NE15	40	16	65	50	40	30	25	101.66	1.5-4
NE30	59	31	90	75	58	47	40	152.4	2.2-7.5
NE50	62	60	90	75	58	47	40	152.4	3-15
NE100	58	110	130	105	80	65	55	200	7.5-30
NE150	65	170	130	105	80	65	55	200	11-37
NE200	73	220	170	135	100	85	70	250	18.5-75
NE300	61	320	170	135	100	85	70	250	22-75
NE400	47	420	205	165	125	105	90	300	45-90
NE500	58	500	240	190	145	120	100	300	45-132

Technical parameters of ring chain bucket elevator

Specification	Max.lifting height (m)	Conveying capacity (m³/h)
TH160	25	7-12
TH200	28	8-15
TH250	30	10-25
TH300	30	25-35
TH315	40	30-40
TH400	40	45-60
TH500	40	65-80
TH630	40	100-120
TH800	40	130-150

Technical parameters of wire belt bucket elevator

Specification	Max. lifting height (m)	Convrying capacity (m³/h)
TDG160	80	34
TDG200	80	45
TDG250	80	71
TDG315	80	101
TDG400	80	158
TDG500	80	218
TDG630	80	345
TDG800	80	491

Plate chain bucket elevator

Specification	Max.lifting height (m)	Max. lifting capacity (m³/h)
NE15	40	16
NE30	59	31
NE50	62	60
NE100	58	110
NE150	65	170
NE200	73	220
NE300	61	320
NE400	47	420
NE500	58	500
